Fully automatic filling of medium-viscosity to paste-like products (e.g. silicone, acrylic, PU sealants, adhesives, greases) into various types of cartridges (plastic, aluminium and composite cartridges). If no separate dosing machine is connected upstream, a suitable dosing unit is integrated directly into the machine to fill the cartridges with precision. After filling, the product thread is cleanly severed, followed by sealing by a piston (or cap in the case of grease cartridges).
Numerous options include, for example, checking piston depth and weight, rejecting defective cartridges, flaring cartridges before insertion, crimping aluminium caps onto aluminium cartridges, printing and labelling, and further special functions available on request.

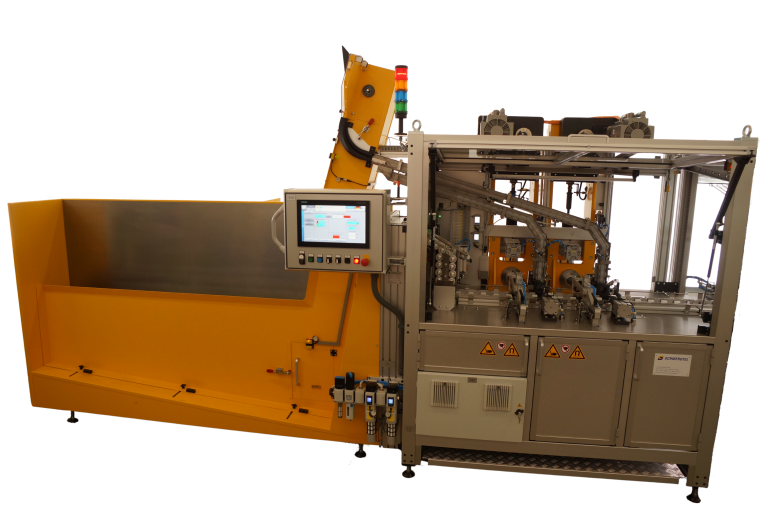

CF-100 Cartridge Filling and Sealing Machine
Depending on the product, up to 100 cartridges per minute can be filled without introducing air or contamination. The two filling stations are fed either by one (in the Splitstream variant) or two external dosing machines, or by two integrated dosing units. The machine’s high filling accuracy can then be validated and corrected using a load cell. Optionally, successfully sealed cartridges can be printed on or labelled.
- Quick changeover between cartridge formats via tool-free replacement of cartridge sets
- Quick changeover of product-contact parts
- Easy access to all stations of the machine
| Dimensions | 5,6 m x 2,1 m x 2,5 m |
|---|---|
| Total weight | ~ 2000 kg |
| Output | up to 100 cartridges / min |

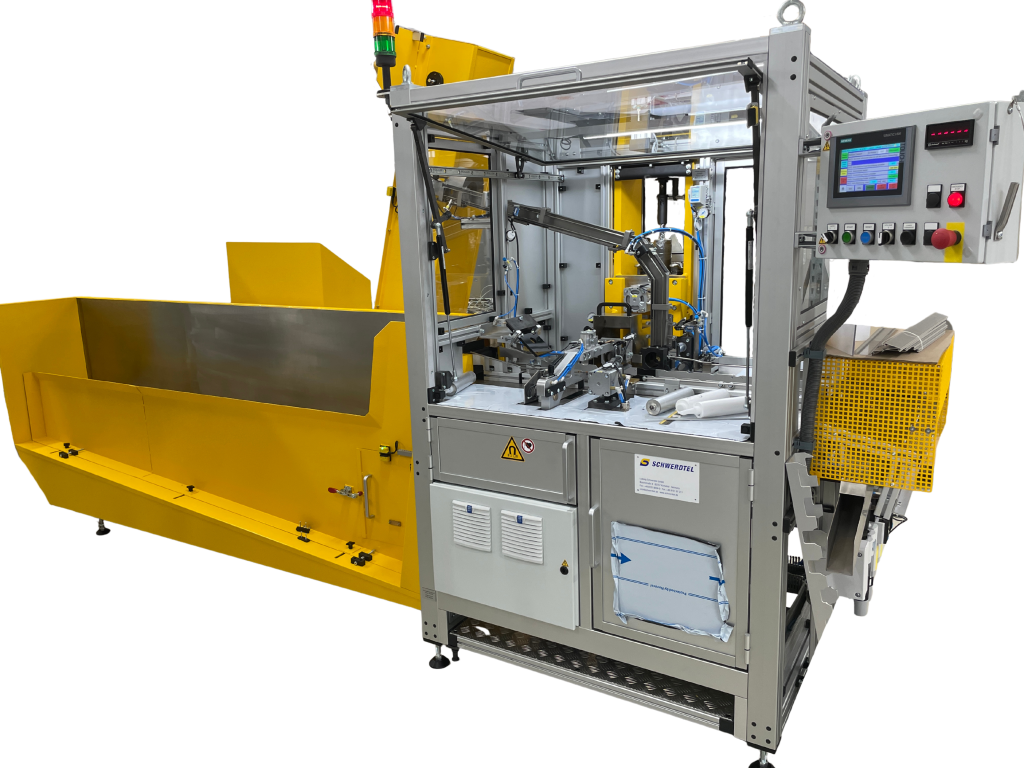

CF-60 Cartridge Filling and Sealing Machine
Depending on the product, up to 60 cartridges per minute can be filled without introducing air or contamination. The filling station is fed either by an external dosing machine or by an integrated dosing unit. The machine’s high filling accuracy can then be validated and corrected using a load cell. Optionally, successfully sealed cartridges can be printed on or labelled.
- Quick changeover between cartridge formats thanks to tool-free replacement of cartridge sets
- Quick changeover of product-contact parts
- Easy access to all stations of the machine
| Dimensions | 4,6 m x 1,3 m x 2,3 m |
|---|---|
| Total weight | ~ 1450 kg |
| Output | up to 60 cartridges / min |

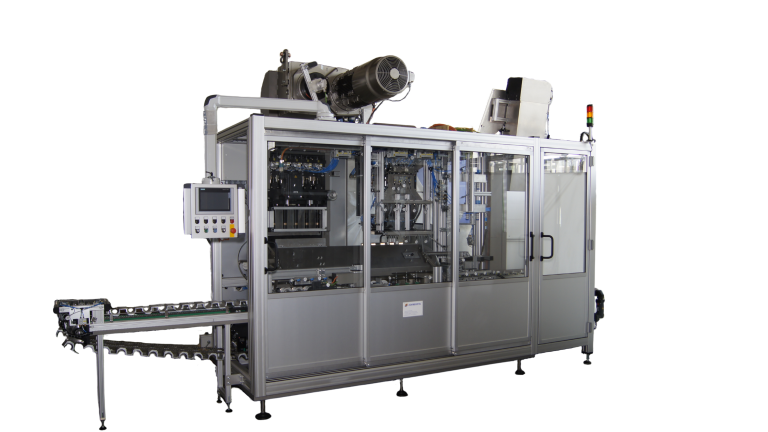

S8-VHS High-Speed Vertical Cartridge Filling and Sealing Machine
Depending on the product, up to five dosing heads can be used to fill up to 200 cartridges per minute without introducing air or contamination. The vertical filling process enables the handling of medium-viscosity products. The filling station is fed by up to five integrated dosing units. The machine’s high filling accuracy can then be validated and corrected using a load cell. Optionally, successfully sealed cartridges can be printed on or labelled.
- Extremely fast production
- Easy access to all stations on the machine
| Dimensions | 3,5 m x 2,0 m x 2,75 m |
|---|---|
| Total weight | ~ 4400 kg |
| Output | up to 200 cartridges/min |

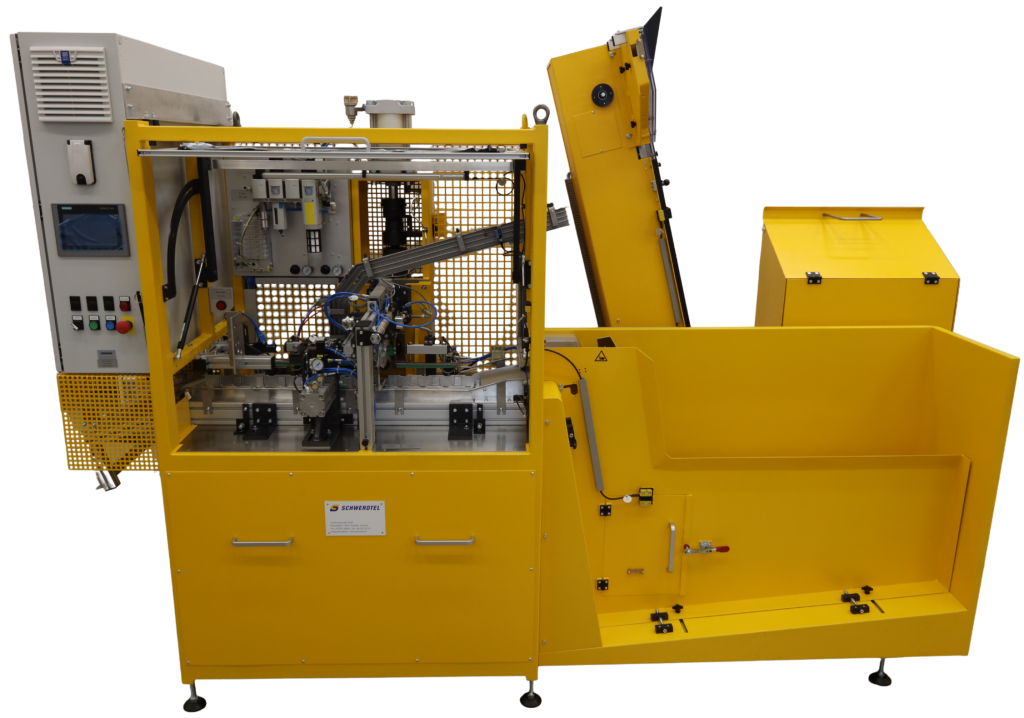

S8-A / S8-B Cartridge Filling and Sealing Machine
- Available with either a pneumatic (A) or electric (B) integrated dosing unit
- Easy access to all stations of the machine
| Dimensions | 3,1 m x 1,3 m x 2,3 m |
|---|---|
| Total weight | A: ~ 1000 kg B: ~ 1600 kg |
| Output | S8-A: up to 35 cartridges/min S8-B: up to 50 cartridges/min |

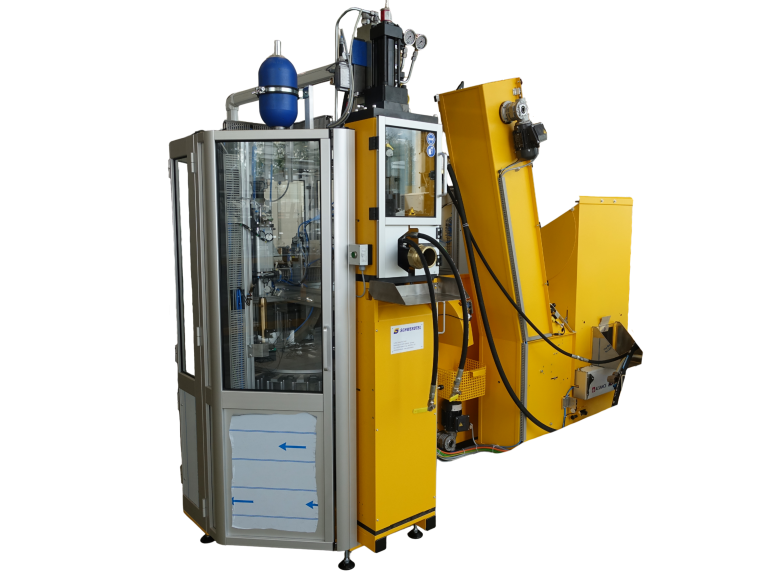

S8-V Vertical Cartridge Filling and Sealing Machine
Depending on the product, up to 35 cartridges per minute can be filled without introducing air or contamination. The vertical filling process enables the handling of medium-viscosity products. The filling station can be fed either by an external dosing machine or by an integrated dosing unit. The machine’s high filling accuracy can then be validated and corrected using a load cell. Optionally, successfully sealed cartridges can be printed on or labelled.
- Available with either a pneumatic or hydraulic, integrated dosing unit
- Easy access to all stations of the machine
| Dimensions | 3,0 m x 2,2 m x 2,4 m |
|---|---|
| Total weight | ~ 2000 kg |
| Output | up to 35 cartridges / min |

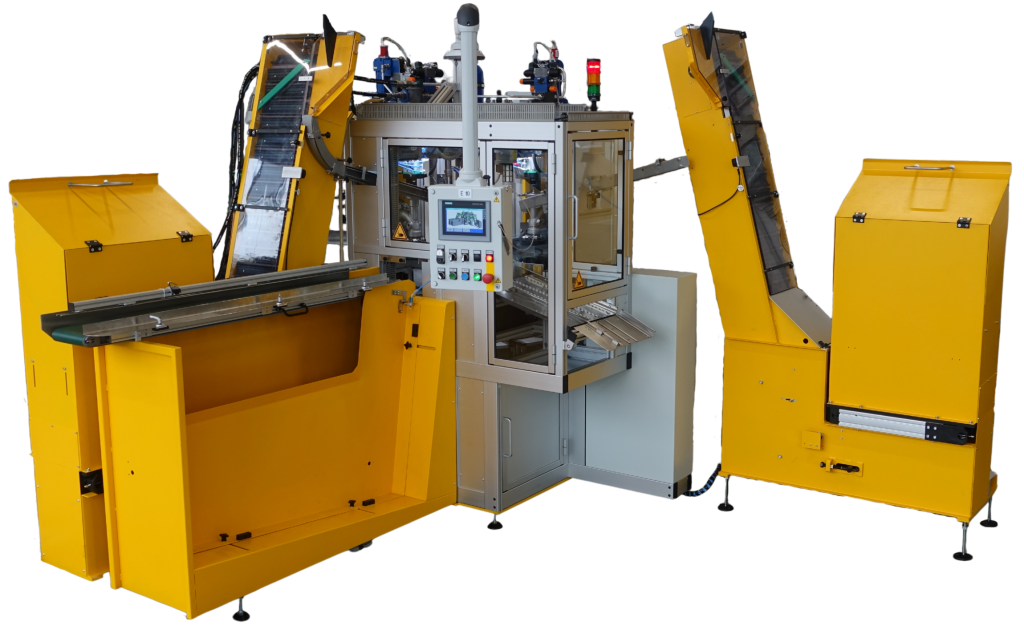

S8-V2K Vertical cartridge filling and sealing machine (for 2 components)
Depending on the product, up to 25 cartridges per minute can be filled without introducing air or contamination. The machine can process either side-by-side or coaxial two-component cartridges. The vertical filling process enables the handling of medium-viscosity products. The filling station can be fed either by an external dosing machine or by an integrated dosing unit. The machine’s high filling accuracy can then be validated and corrected using a load cell. Optionally, successfully sealed cartridges can be printed on or labelled.
- Available with either a pneumatic or hydraulic, integrated dosing unit
- Easy access to all stations of the machine
| Dimensions | 3,8 m x 3,4 m x 2,4 m |
|---|---|
| Total weight | ~ 3400 kg |
| Output | up to 25 cartridges/min |

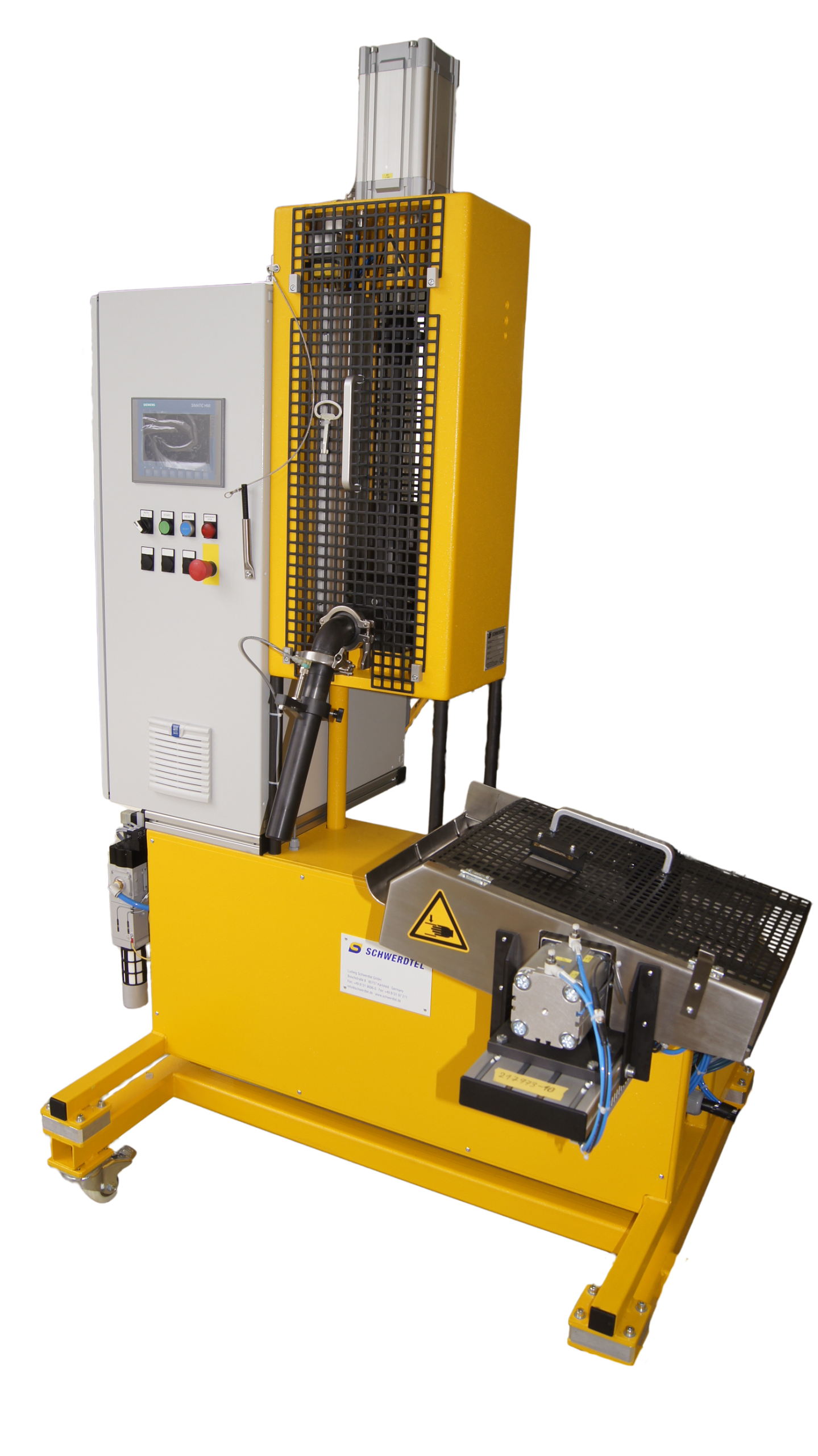

SD-H Semi-Automatic Filling and Sealing Machine
Depending on the product and container size, up to 20 cartridges per minute can be filled manually and sealed automatically.
For processing cartridges and buckets from 100 to 3000 ml
Cost-effective solution for small production volumes
| Dimensions | 1,4m x 1,2m x 2,2m |
|---|---|
| Total weight | ~ 600 kg |
| Output | up to 20 cartridges/min |
