Fully or semi-automatic dispensing of self-levelling, medium-viscosity to paste-like products (e.g. silicone, adhesives, greases, hot-melt adhesives, printing inks, including UV-curing types) into various can or bucket sizes. The subsequent sealing is carried out by applying a vacuum and crimping, or by simply placing the lid on and then pressing it down or screwing it on.
S7-G/1VC Fully automatic gravimetric can filling and sealing machine
Depending on the product, up to 16 cans per minute can be filled. Vertical filling enables the processing of medium-viscosity and self-levelling products. The filling station is fed by an integrated dosing unit. The machine’s high filling accuracy is validated and corrected directly via a load cell. Evacuating the headspace and flushing it with inert gas during crimping ensures that the cans are filled free from air and contamination.
- For processing conical 1 kg or 2.5 kg cans
- Automatic adjustment to viscosity and temperature parameters at programme start
- Also available as separate units (filling only / sealing only)
- Easy access to all stations of the machine
| Dimensions | 3,9 m x 1,0 m x 2,0 m |
|---|---|
| Total weight | ~ 1300 kg |
| Output | up to 16 cans / min |

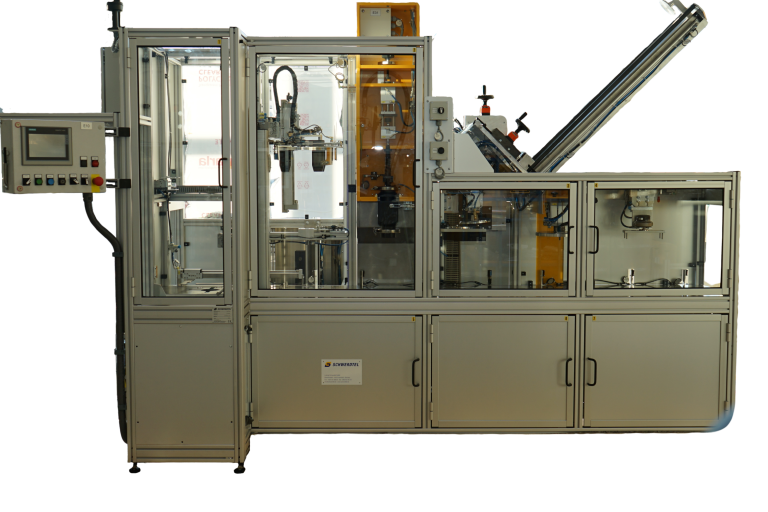

Fully automatic gravimetric/volumetric can filling system S7-MG / S7-MV
Depending on the product, up to 16 cans or buckets can be filled per minute. Vertical filling enables the processing of medium-viscosity and self-levelling products. The filling station is fed either by an external dosing machine (for the S7-MV) or by an integrated dosing unit. The machine’s high filling accuracy can be validated and corrected either directly or subsequently using a load cell.
- For processing conical 1 kg or 2.5 kg cans
- Easy access to all stations of the machine
| Dimensions | 3,1 m x 0,9 m x 2,2 m |
|---|---|
| Total weight | ~ 500 kg |
| Output | up to 16 cans / min or 2 buckets (20 kg)/min |

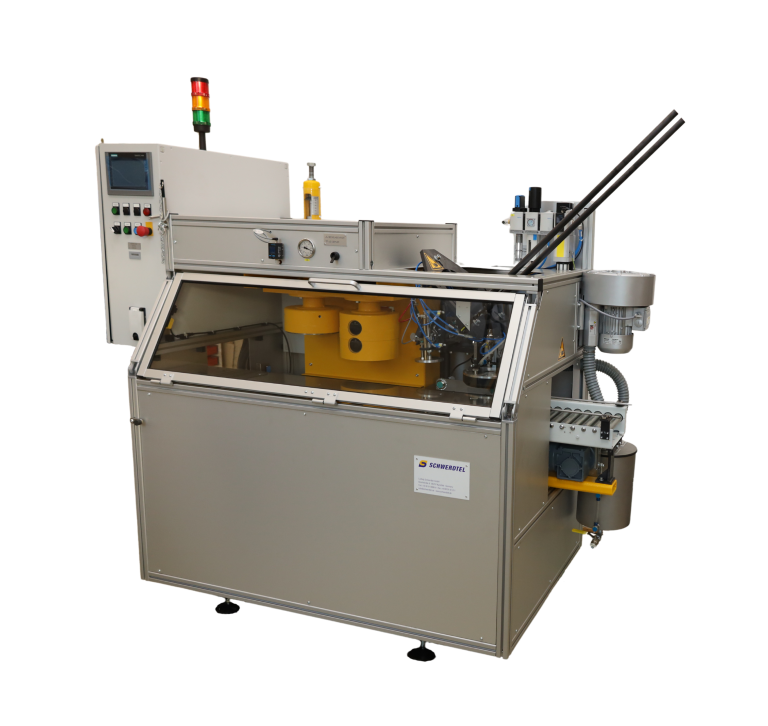

Fully automatic vacuum can sealer S10-1V
Depending on the container type, up to 21 cans can be sealed per minute. By evacuating the headspace and flushing it with inert gas during sealing, air-free and contamination-free filling can be guaranteed.
- For processing conical 1 kg or 2.5 kg cans
| Dimensions | 1.9 m x 1.0 m x 1.9 m |
|---|---|
| Total weight | ~ 700 kg |
| Output | up to 21 cans / min |
S10-HU Semi-Automatic Vacuum Can Sealer
Depending on the container type, up to 9 cans per minute can be sealed. By evacuating the headspace and flushing it with inert gas during sealing, air-free and contamination-free filling can be guaranteed. The cans are loaded manually into the desiccant and vacuum sealing stations.
- For processing conical 1 kg or 2.5 kg cans
| Dimensions | 1.3 m x 0.7 m x 1.8 m |
|---|---|
| Total weight | ~ 450 kg |
| Output | up to 9 cans / min |
