Fully automatic machines for the reliable packaging of filled cartridges of various sizes into appropriate cartons. These are carefully shaped, sealed after the cartridges have been inserted, and ejected ready for dispatch.
By connecting a fully automatic cartridge filling machine upstream, a highly automated and high-performance production line can be created.

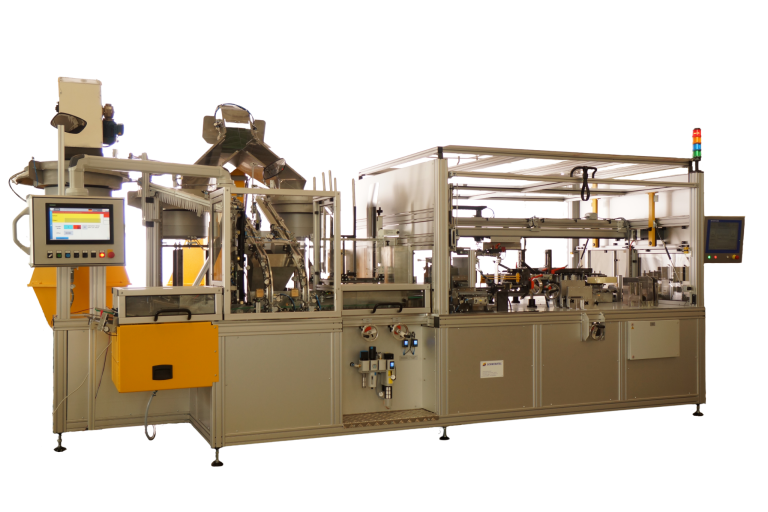

CP-100 Fully automatic case packer
Depending on the pack format and packaging type, up to 120 cartridges per minute can be precisely packed into the appropriate cartons. All standard pack formats can be accommodated. Finally, the cartons are neatly sealed with adhesive tape or hot-melt glue.
- Quick changeover of pack formats thanks to tool-free conversion
- Easy access to all stations of the machine
- Optional attachment of clips and/or insertion of round nozzles
| Dimensions | 5,5 m x 1,8 m x 2,0 m |
|---|---|
| Total weight | ~ 1800 kg |
| Output | up to 120 cartridges / min |
| Packaging formats | 2×3, 2×4, 2×5, 2×6, 3×3, 3×4, 3×5, 3×6, 4×4, 4×5, 4×6, 5×5, 5×6 |

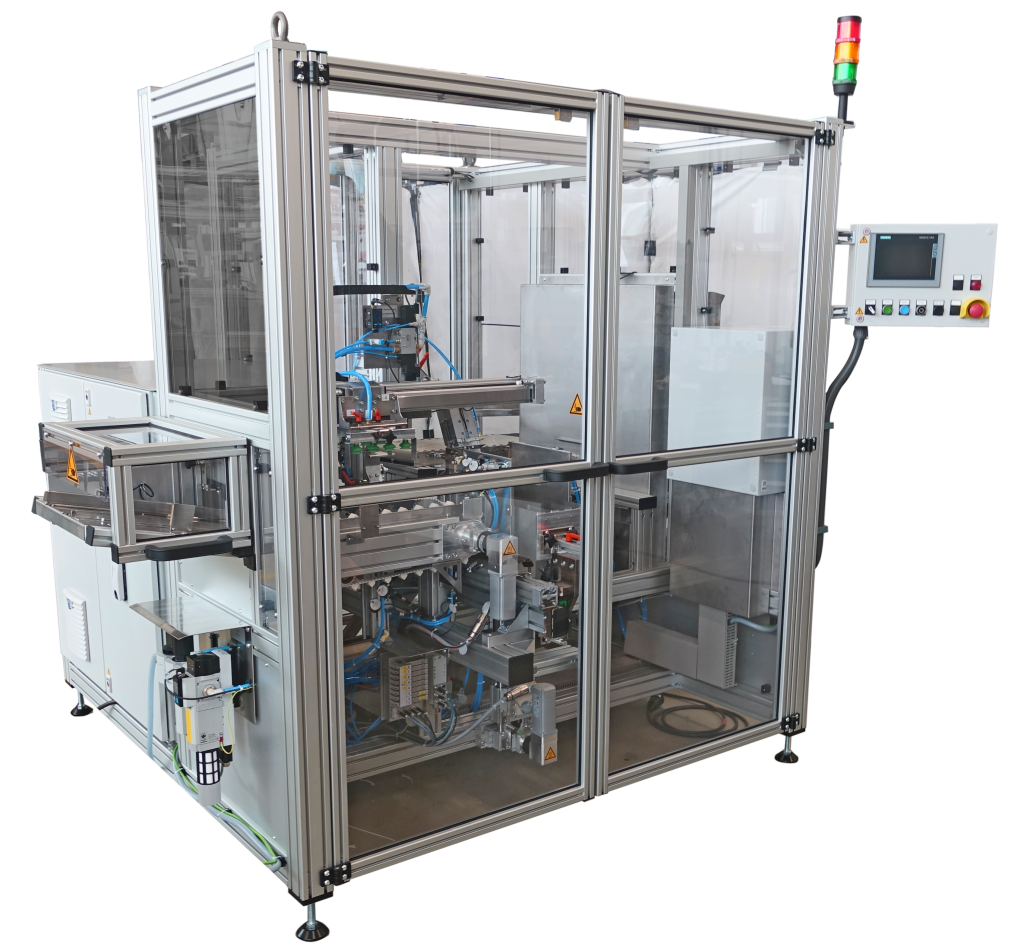

CP-60 Fully automatic case packer
Depending on the pack format and packaging type, up to 60 cartridges per minute can be precisely packed into the appropriate cartons. All standard pack formats can be accommodated. Optionally, the cartons are neatly sealed with adhesive tape in a subsequent machine.
- Quick changeover of pack formats thanks to tool-free conversion
- Easy access to all stations of the machine
- Optional attachment of clips and/or insertion of round nozzles
| Dimensions | 5,1 m x 3,0 m x 2,0 m |
|---|---|
| Total Weight | ~ 1,200 kg (with both nozzle stations) |
| Output | up to 60 cartridges / min |
| Packaging formats | 2×3, 2×4, 2×5, 2×6, 3×3, 3×4, 3×5, 3×6, 4×4, 4×5, 4×6, 5×5, 5×6 |
