Hydraulic presses and pumps for conveying low- to high-viscosity products (e.g. silicone, acrylic, PU sealants, adhesives, greases) from drums, hobbocks as well as containers and buffers of various sizes for further processing in the production line. Safe discharge even at very high operating pressures thanks to multiple redundant safety devices.

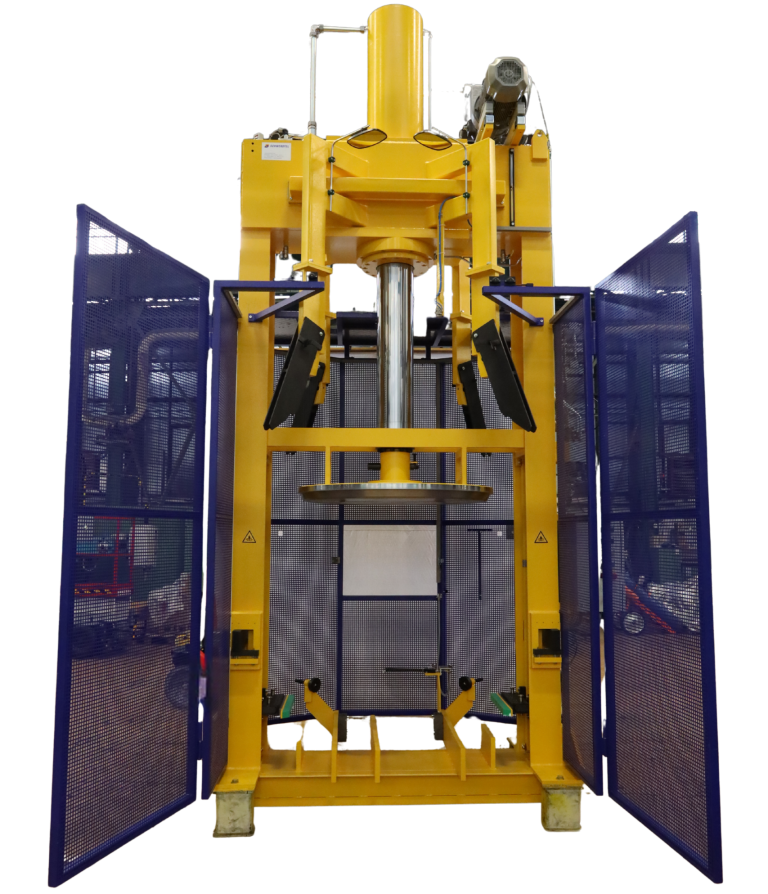

S2-F hydraulic container press with lifting mechanism
The lifting mechanism enables containers to be rolled into the press on a level surface, ensuring convenient and safe handling. As there are very few parts in contact with the product, product changeovers can be carried out quickly.
- For containers up to Ø1500 mm with a volume of 500–1500 l
- Wide pressure range via hydraulic cylinders with Ø 200 / 250 / 300 mm
- Optionally available with automatic or manual changeover for continuous operation (two presses in sequential use)
Dimensions 2,5 m x 2,6 m x (4,0-5,5 m) Total weight ∅200 mm: 4700 kg
∅250 mm: 6000 kg
∅300 mm: 6700 kgMax. hydraulic pressure 250 bar Max. force on pressure plate ∅200 mm: 770 kN
∅250 mm: 1200 kN
∅300 mm: 1725 kN
Note: Foundation work (pit) required!

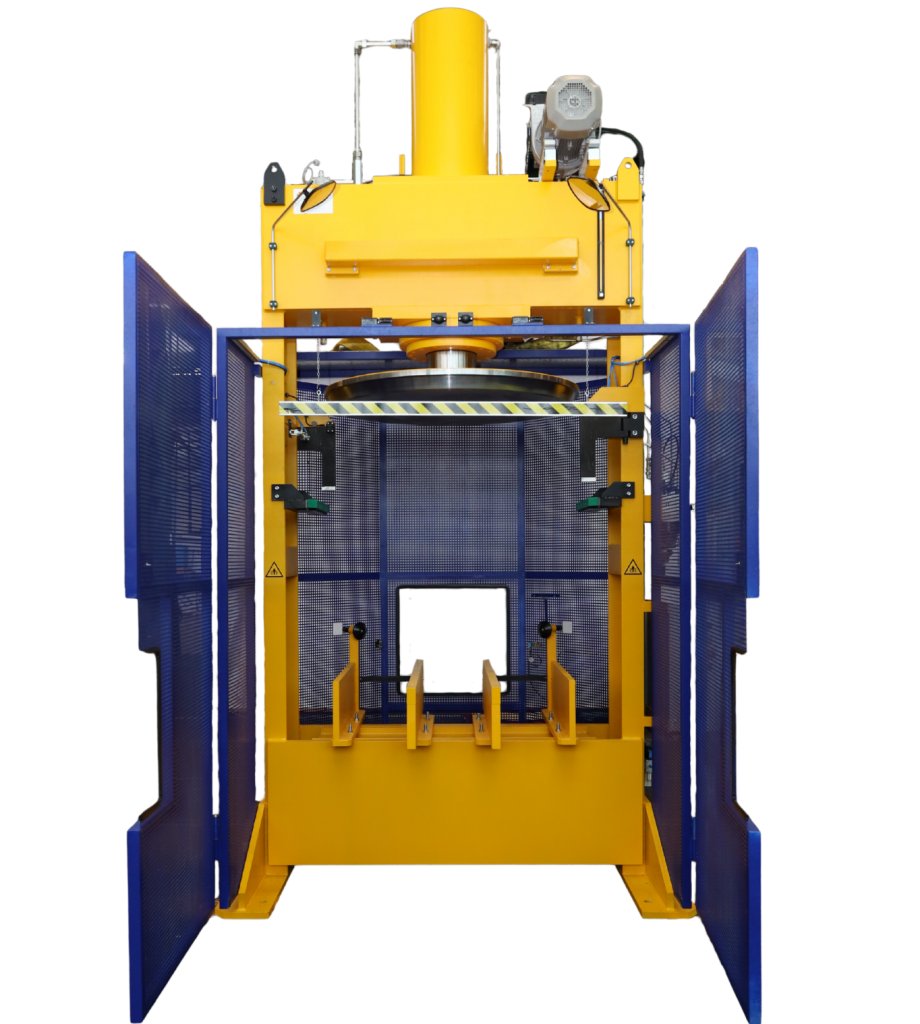

S4-A hydraulic container press without lifting mechanism
The containers to be compressed are loaded into the press using a forklift truck. As there are very few parts in contact with the product, product changeovers can be carried out quickly.
- For containers up to Ø1500 mm with a volume of 500–1500 l
- Wide pressure range via hydraulic cylinders with Ø 200 / 250 / 300 mm
- Optionally available with automatic or manual changeover for continuous operation (two presses in sequential use)
| Dimensions | 2,5 m x 2,6 m x (4,0-5,5 m) |
|---|---|
| Total Weight | ∅200 mm: 4700 kg ∅250 mm: 6000 kg ∅300 mm: 6700 kg |
| Max. hydraulic pressure | 250 bar |
| Max. force on pressure plate | ∅200 mm: 770 kN ∅250 mm: 1200 kN ∅300 mm: 1725 kN |
Note: No foundation work (pit) required!

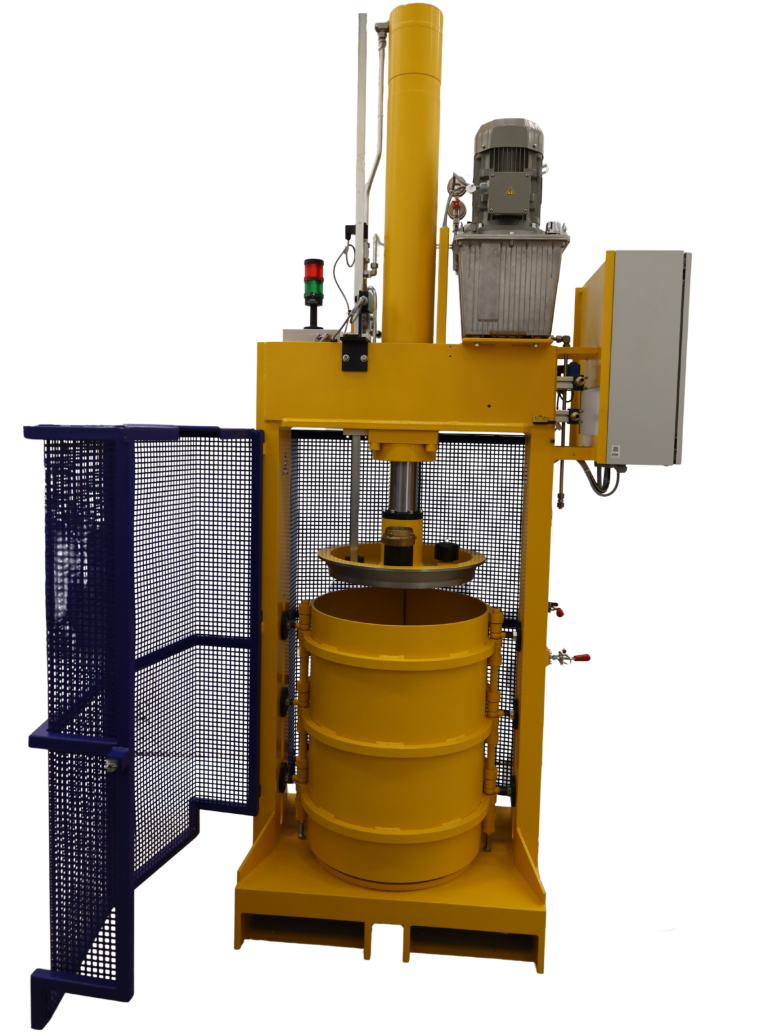

S6-F Hydraulic Drum Press
Enables the efficient extraction of high-viscosity products from ribbed or straight-walled 200-litre drums. The one- or three-piece drum reinforcement with clamping mechanism (mechanical or hydraulic) ensures maximum safety even at high pressures and allows for quick drum changes to optimise production. If required, a double cylinder can be used to increase the product pressure to 24 bar.
For containers up to Ø1500 mm with a volume of 500–1500 l
- Optionally available with a gravity roller conveyor for maximum convenience when loading the drum
- Optionally available with automatic or manual changeover for continuous operation (two presses in sequential use)
| Dimensions | 0,9 m x 1,0 m x 3,1m |
|---|---|
| Total weight | ~ 1200 kg |
| Max. hydraulic pressure | 250 bar |
| Max. product pressure | Single cylinder: 12 bar Double cylinder: 24 bar |

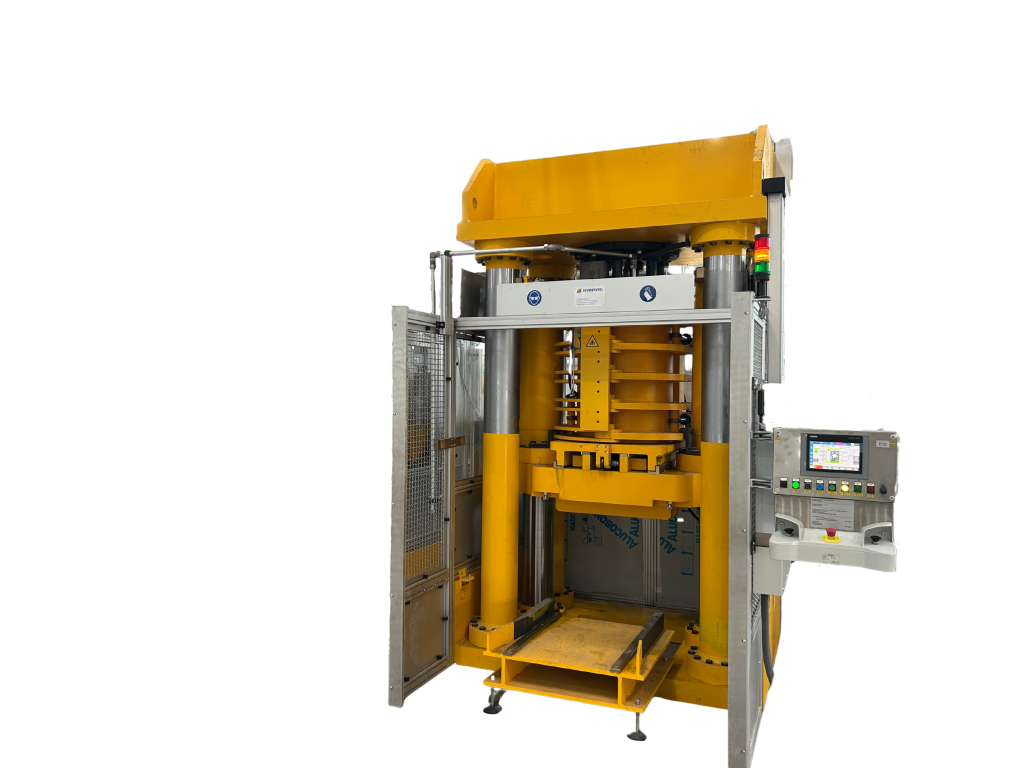

S6-F Hydraulic Drum Press (80 bar)
Enables the efficient dispensing of very high-viscosity products (e.g. windscreen adhesive) from straight-walled 200-litre drums. The extremely robust drum reinforcement with automatic closure ensures controlled dispensing under maximum pressure.
- Maximum safety thanks to a fully enclosed safety enclosure including a light curtain and safety guard
- Automatic drum feed for optimised handling
- Optionally available with automatic changeover for continuous operation (two presses are used sequentially)
| Dimensions | 3,5 m x 3,0 m x 3,5m |
|---|---|
| Total Weight | ~ 16000 kg |
| Max. hydraulic pressure | 280 bar |
| Max. product pressure | 80 bar |

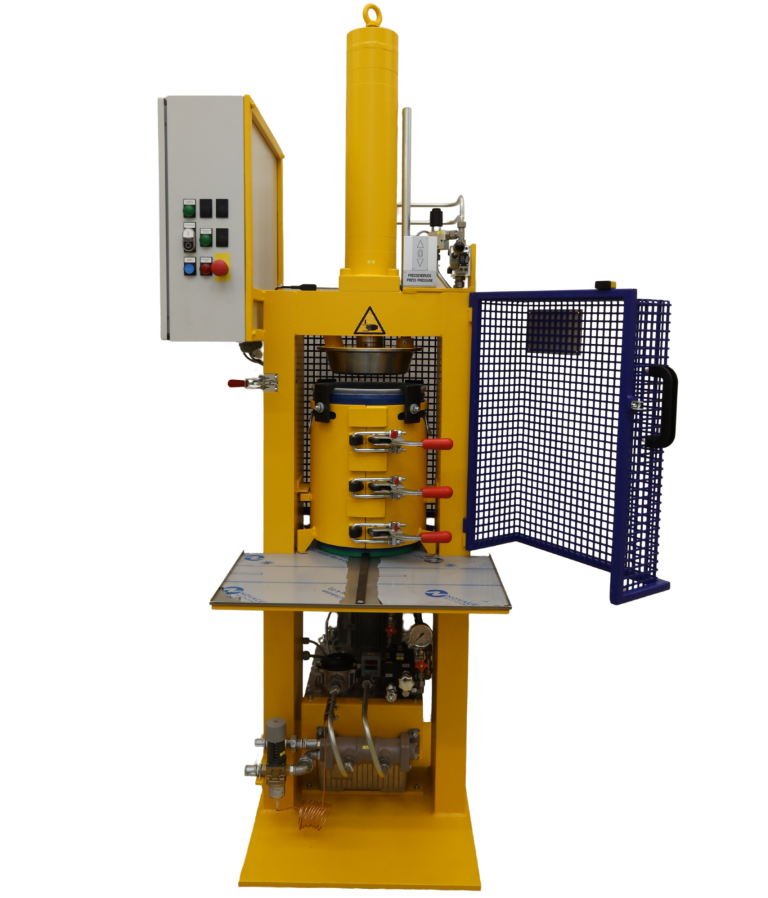

S6-H Hydraulic Hobbock Press
Enables the efficient dispensing of high-viscosity products from Hobbock containers. The one-piece Hobbock reinforcement with clamping mechanism ensures controlled dispensing.
- For containers (Ø280mm – 330mm) with a capacity of up to approx. 30 litres
- Maximum safety thanks to a fully enclosed safety guard with safety switches
| Dimensions | 0,8m x 0,8m x 2,1m |
|---|---|
| Total Weight | ~ 500 kg |
| Max. hydraulic pressure | 80 bar |
| Max. product pressure | 16 bar |

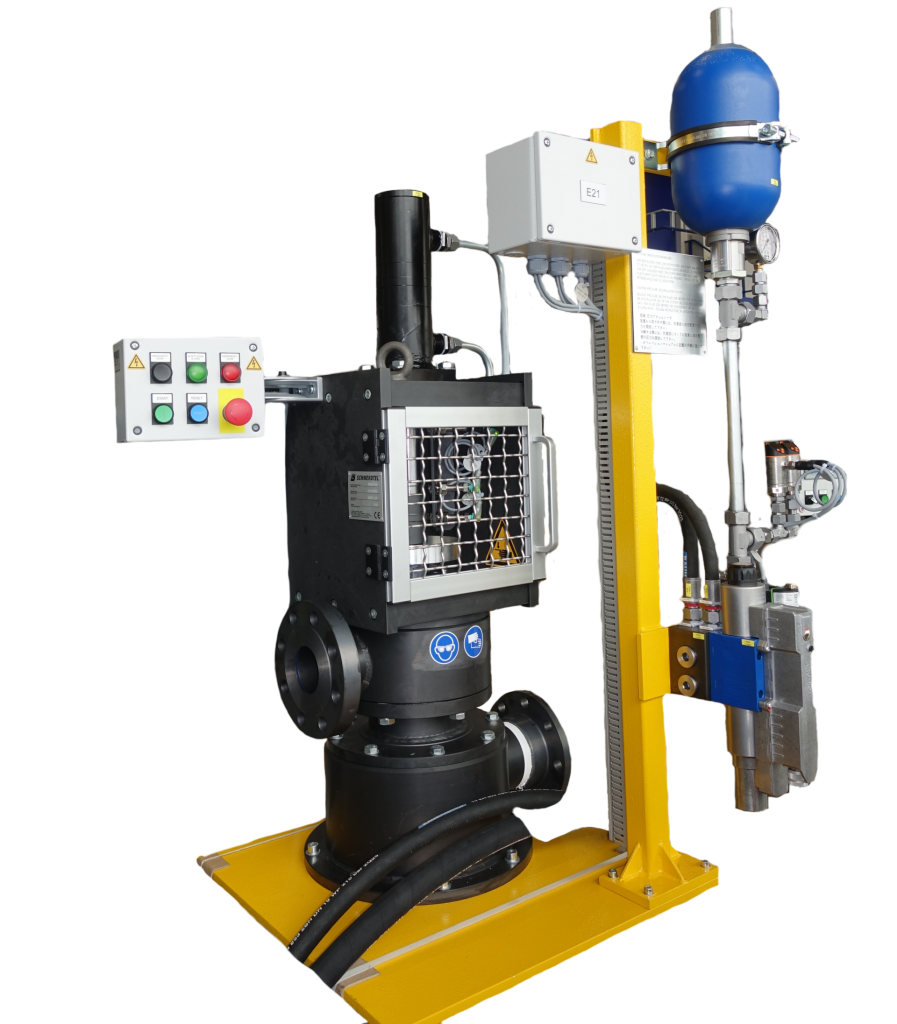

S11-RH Hydraulic Tank Pump
The pump can be fitted directly into the pipework, thereby ensuring reliable discharge of the product from containers and buffer tanks of all types.
- Particularly suitable for conveying shear-sensitive products
- Optionally available with automatic or manual changeover for continuous conveyance (two pumps operating sequentially)
| Dimensions | 0,7m x 0,6m x 2,2m |
|---|---|
| Total Weight | ~ 500 kg |
| Max. product pressure | 55 bar |
| Output | 30 l/min 60 l/min (XL-version) |

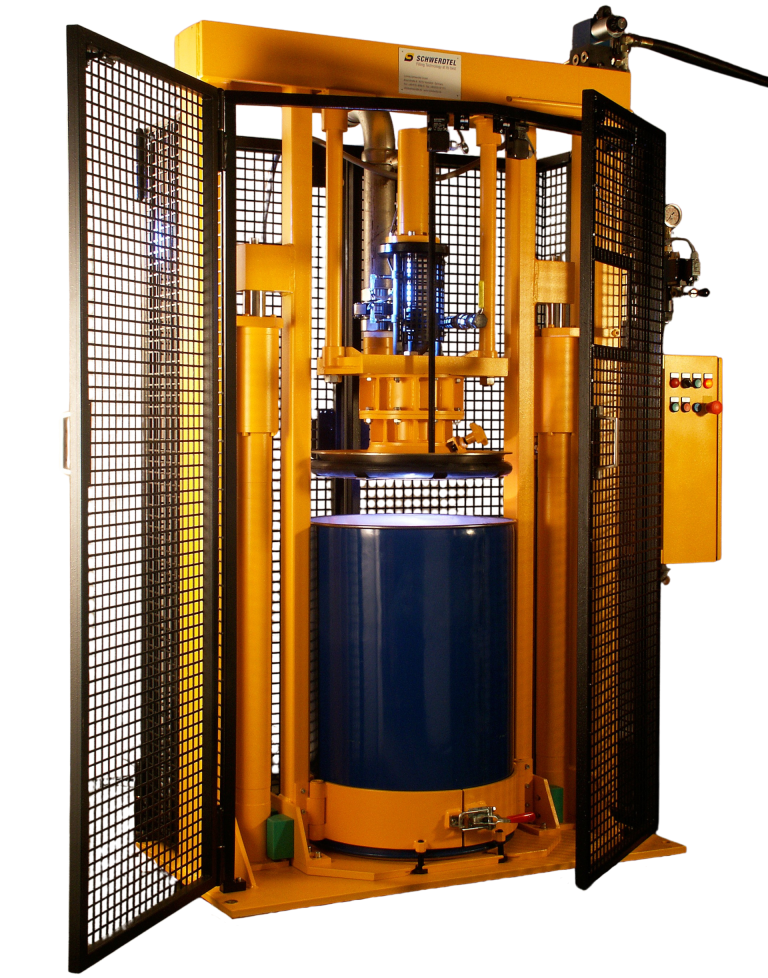

S11 and S11-S hydraulic drum emptying pumps
The pump ensures reliable discharge of the product from ribbed or straight-walled 200-litre drums. Due to its design, no drum reinforcement is required. The drums can be placed on a level surface for convenient and safe handling. Available as the S11 variant, with the pump mounted on a movable base plate, or as the S11-S with drum lifting and a fixed, piped-in pump for products that are highly sensitive to moisture.
- Particularly suitable for conveying shear-sensitive products
- Optionally available with a gravity roller conveyor for maximum convenience when positioning the drum
- Optionally available with automatic or manual changeover for continuous conveying (two pumps operating sequentially)
| Dimensions | 1,0m x 1,4m x 2,5m |
|---|---|
| Total Weight | ~ 1600 kg |
| Max. product pressure | 55 bar |
| Output | 30 l/min 60 l/min (XL-version) |

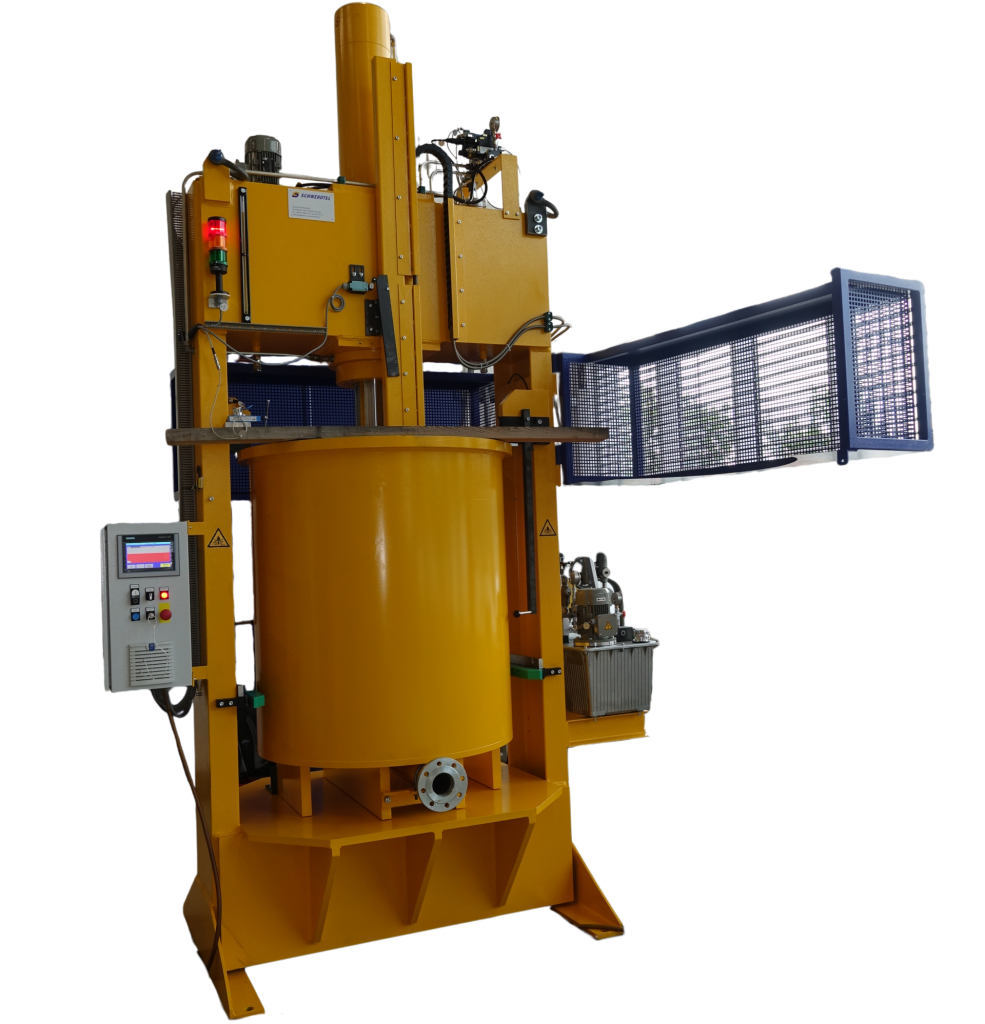

S4-A Hydraulic Buffer Press (up to 1500 l)
Installed as a buffer tank for high-viscosity products between the pump or extruder and the filling line. At the same time, the machine allows the stored product to be dispensed from the buffer tank for further processing.
Note: No foundation work (pit) required! - with a capacity of up to 1500 l
- to compensate for pressure fluctuations in the customer’s material supply and/or to ensure minimal downtime and maximum production efficiency
- Wide pressure range via hydraulic cylinders with Ø 200 / 250 / 300 mm
| Dimensions | 2.5 m x 2.6 m x (4.0–5.5 m) |
|---|---|
| Total Weight | ∅200 mm: 6200 kg ∅250 mm: 7500 kg ∅300 mm: 8200 kg |
| Max. hydraulic pressure | 250 bar |
| Max. force on pressure plate | ∅200 mm: 770 kN ∅250 mm: 1200 kN ∅300 mm: 1725 kN |

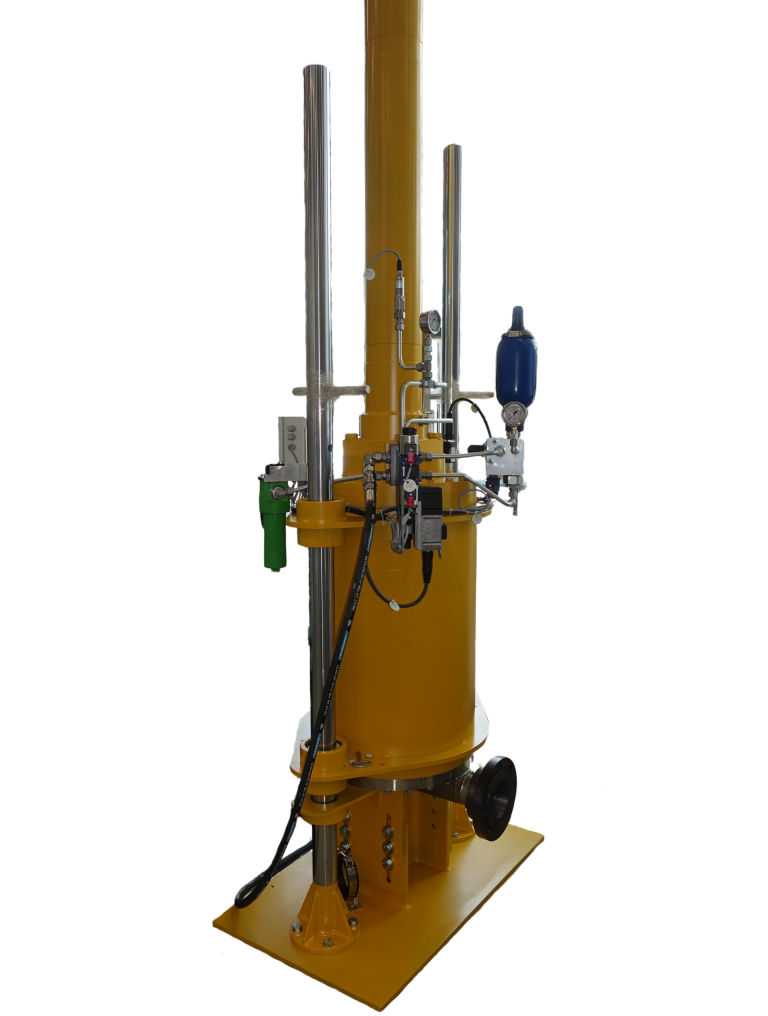

100-litre hydraulic buffer press
Installed as a buffer tank for high-viscosity products between the pump or extruder and the filling line. At the same time, the machine allows the stored product to be dispensed from the buffer tank for further processing.
- with a capacity of up to 100 l
- to compensate for pressure fluctuations in the customer’s material supply and/or to ensure minimal downtime and maximum production efficiency
| Dimensions | 1,0m x 0,6m x 3,4m |
|---|---|
| Total Weight | ~ 1300 kg |
| Max. product pressure | 18 bar |

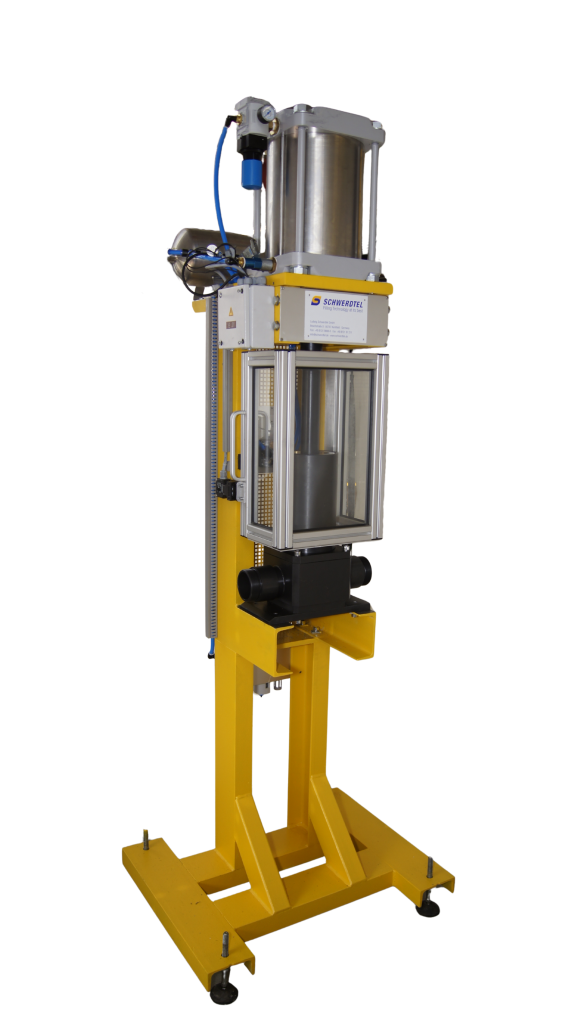

Hydraulic/pneumatic material buffer (up to 5 l)
Installed as a buffer tank for high-viscosity products between the pump or extruder and the filling line.
- to compensate for pressure fluctuations in the customer’s material supply
- with a capacity of up to 5 l
| Dimensions | 1,0 m x 0,6 m x 3,4 m |
|---|---|
| Total Weight | ~ 2000 kg |
| Max. product pressure | 10 bar |
