Other specialised machines can be used to handle a wide range of applications relating to the feeding, dosing, filling and packaging of viscous products.

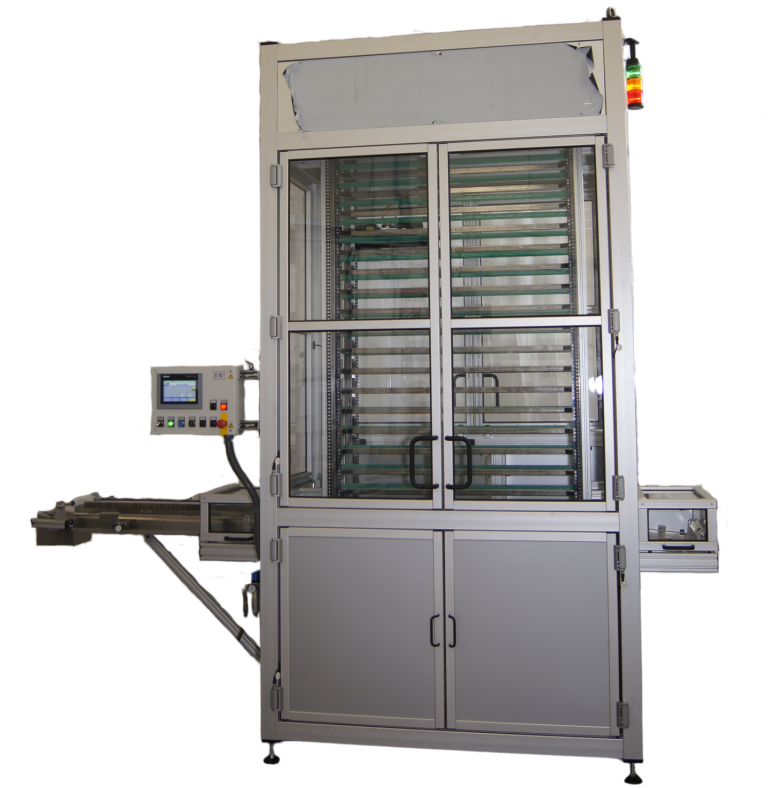

CB-500 Cartridge Buffer
As a dynamic magazine, it can temporarily store up to 500 filled cartridges and dispense them as required. Positioned between the filling machine and the case packer, it receives filled cartridges in the event of a fault on the case packer, or supplies the case packer with cartridges from the buffer if a fault occurs on the filling machine. During smooth operation, the cartridges simply pass through.
- for minimal downtime and maximum production efficiency
- large capacity for extended buffer time
| Dimensions | 3,4 m x 1,6 m x 3,2 m |
|---|---|
| Total weight | ~ 1500 kg |
| Output | 500 cartridges |

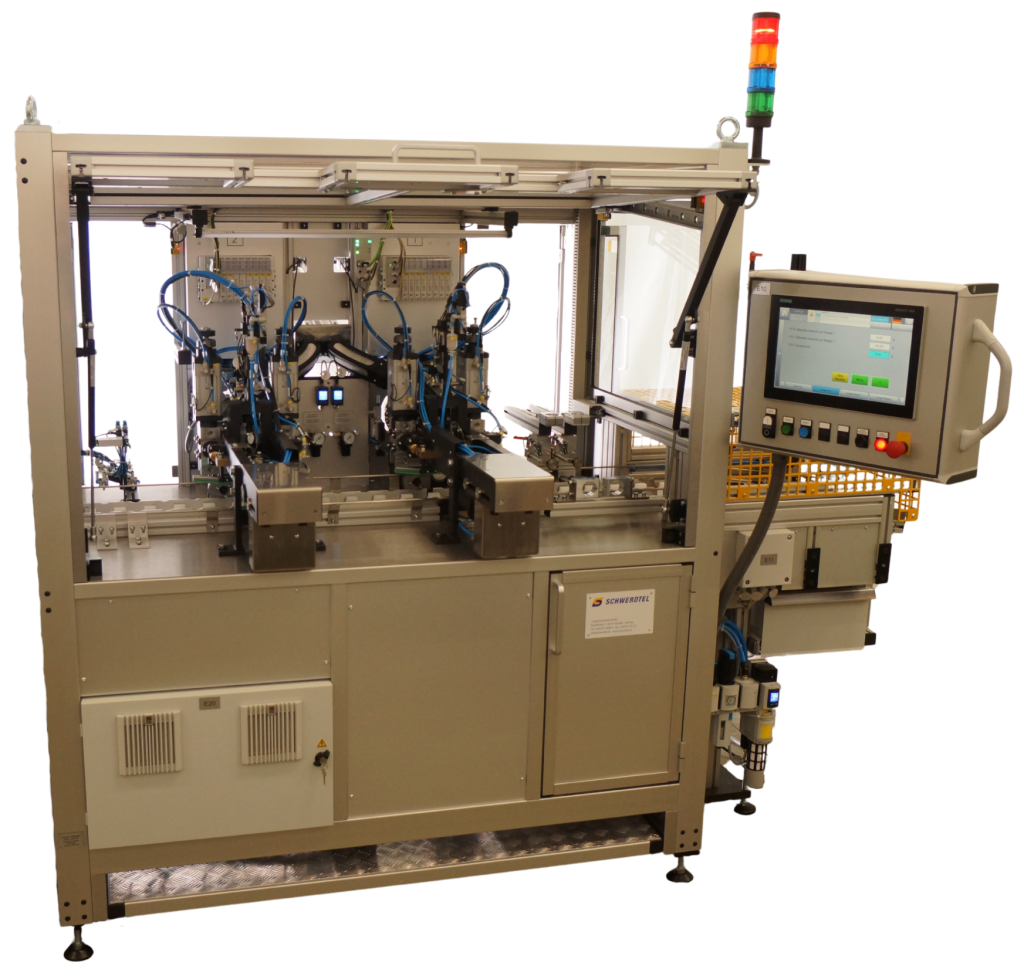

CS-70 Double flanging station
In two cartridge positions, an aluminium lid is crimped onto a filled aluminium cartridge, creating an airtight and leak-proof seal. The machine is positioned downstream of the filling line.
- easy access to all stations of the machine
- Optional insertion of a silica gel capsule into the cartridge
| Dimensions | 2,4 m x 1,6 m x 2,3 m |
|---|---|
| Total weight | ~ 1500 kg |
| Capacity | up to 70 cartridges / min |

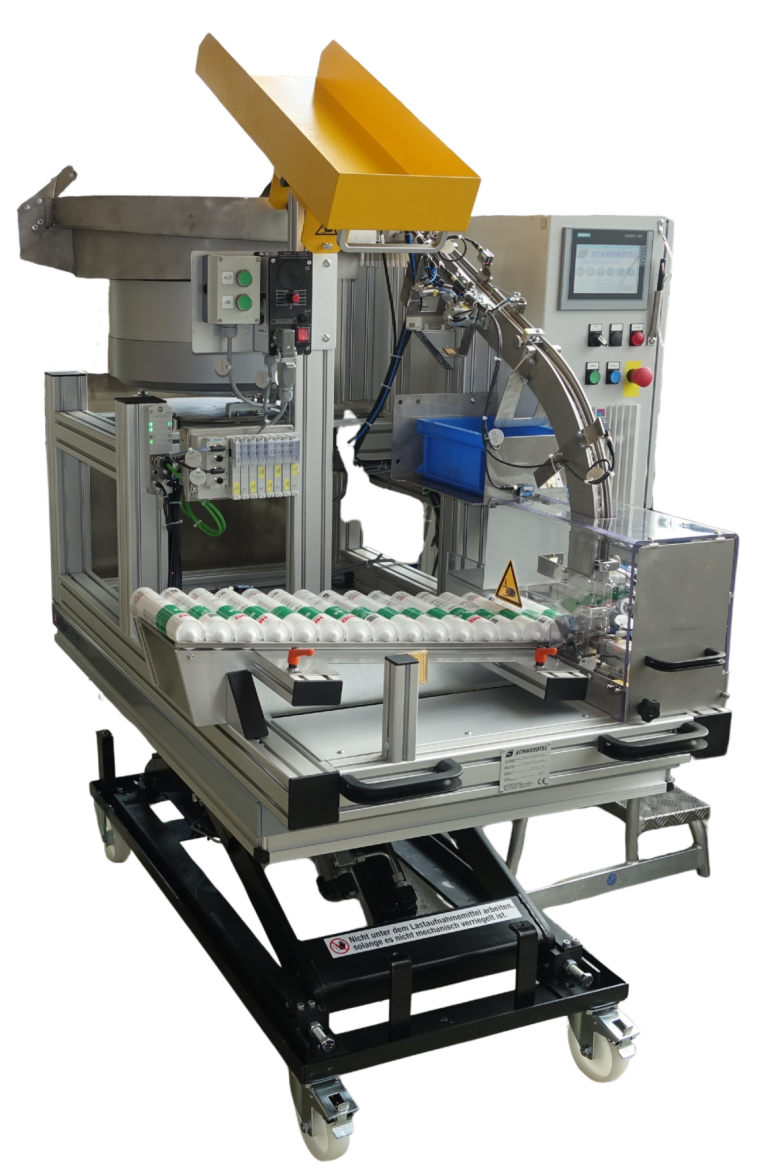

Mobile clip nozzle inserter
In each cartridge position, a clip nozzle is fitted over the nose of the cartridge. The machine is positioned downstream of the filling line.
- adjustable to the height of the inlet/outlet sections of the adjacent machines
- can be moved flexibly thanks to castors
| Dimensions | 1,7 m x 1,2 m x 1,9 m |
|---|---|
| Total weight | ~ 500 kg |
| Capacity | up to 30 cartridges / min |

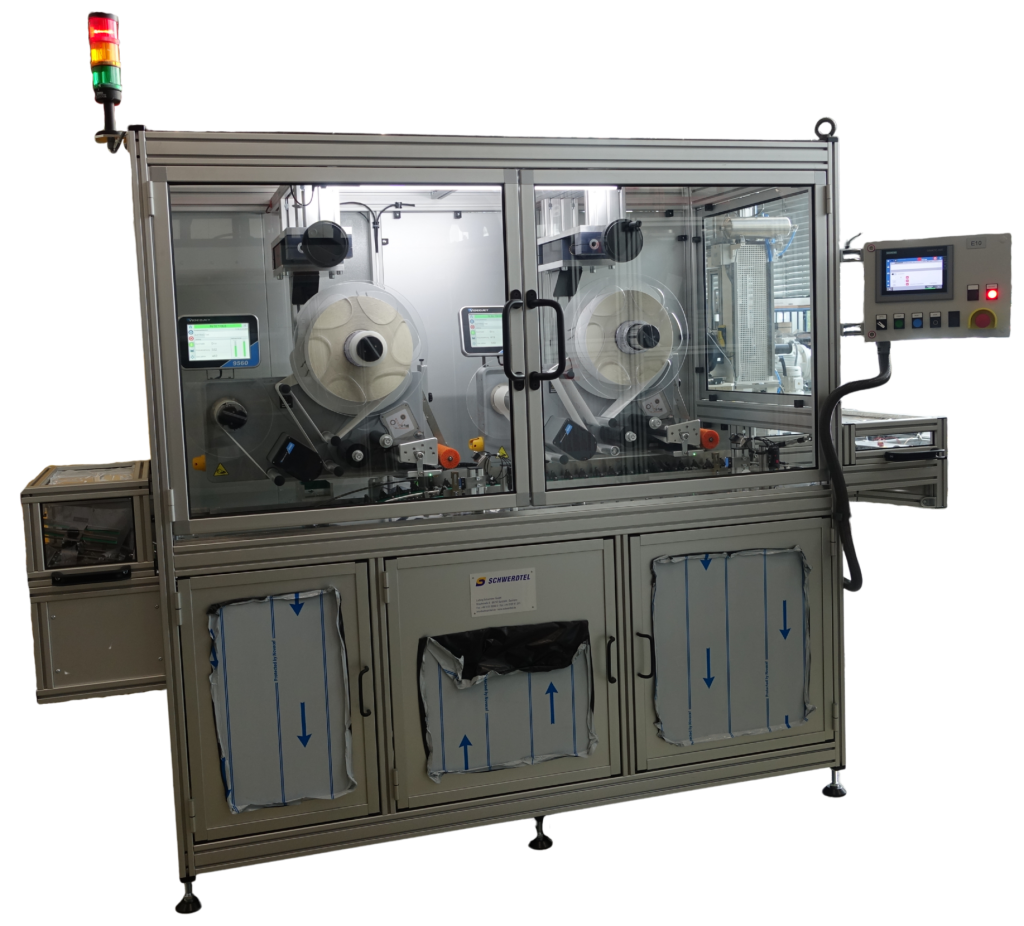

Cartridge Labelling Module
Incoming filled cartridges have a label applied to their outer surface. The label can be applied either fully or partially around the circumference.
- easy access to all stations of the machine
| Dimensions | 2,0 m x 1,6 m x 2,3 m |
|---|---|
| Total weight | ~ 1000 kg |
| Capacity | up to 60 cartridges / min |
