Systems for the automatic filling of high-viscosity products into standard drums (200 l) or Hobbock containers (up to approx. 30 l). Even highly reactive PU compounds or hot-melt adhesives can be processed using the appropriate customised solution. Safe Filling even at very high operating pressures, thanks to multiple redundant safety devices.

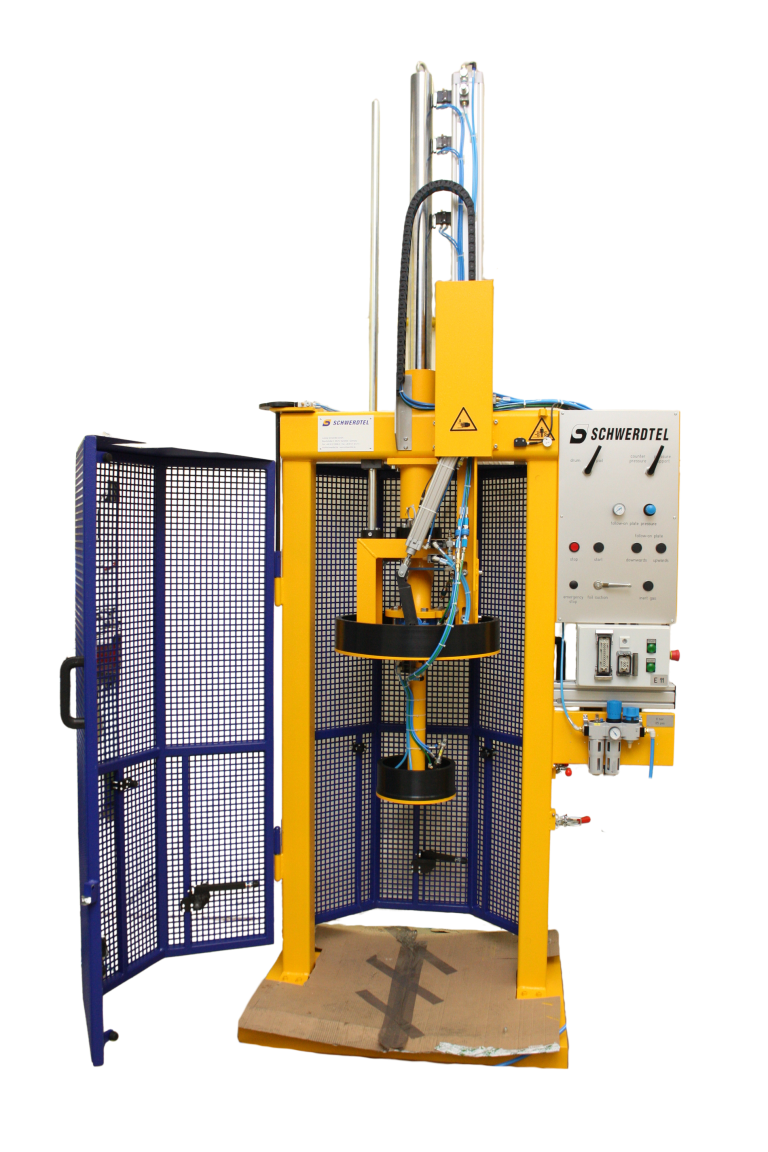

S14-P Drum Filling System
Reliable filling of 200-litre drums or hobbock containers. A filling plate with a round film cover protects the product and the drum from contamination. An inlet and outlet roller conveyor ensures quick drum changes and maximum convenience.
- For ribbed or straight-walled 200-litre drums or Hobbock containers up to approx. 30 litres
- Optionally available with inert gas purging prior to filling
| Dimensions | 1,4 m x 1,1 m x 3,2 m |
|---|---|
| Total weight | ~ 550 kg |
| Output | up to 40 l/min |

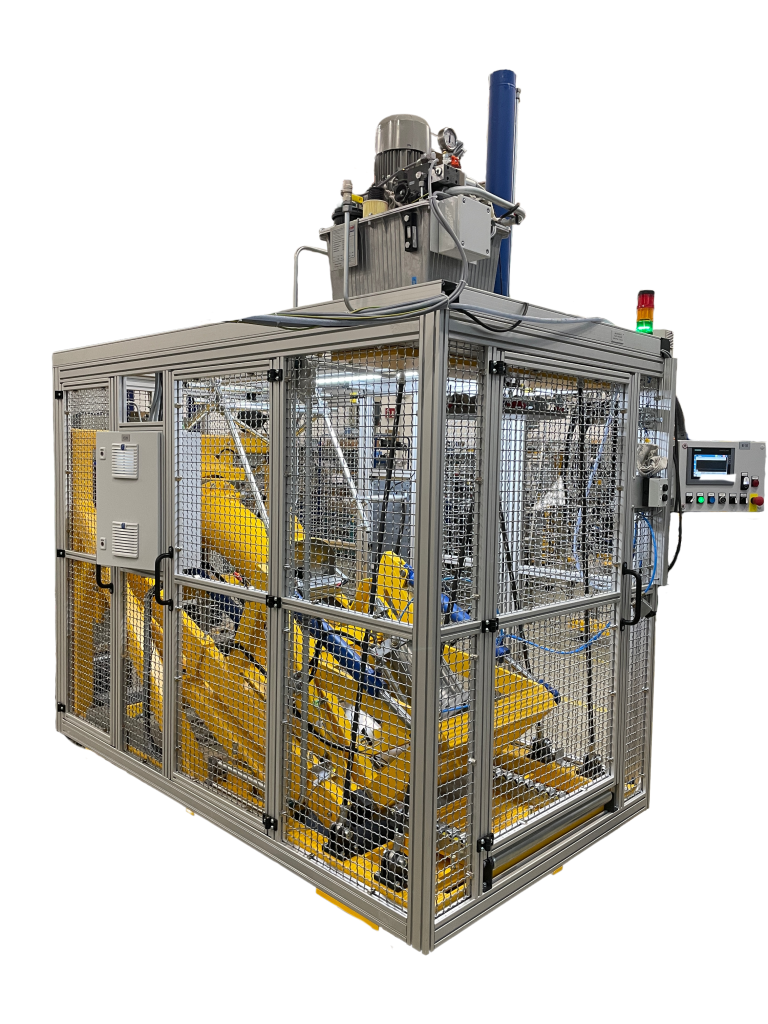

S14-Hotmelt Drum Filling System
Heated filling of 200-litre drums with hot-melt adhesives. An inlet and outlet roller conveyor ensures quick drum changes and maximum convenience. The product flow can be interrupted using a manual shut-off device.
- For ribbed or straight-walled 200-litre drums or Hobbock containers up to approx. 30 litres
- Maximum safety through a fully enclosed safety guard, including safety cage and protective glass, during filling under the highest back pressure
| Dimensions | 3,5 m x 1,5 m x 3,0 m |
|---|---|
| Total weight | ~ 2500 kg |
| Output | up to 40 l/min |
Do you have any other questions?
Every application is unique.
Together, we’ll find the right solution for your project.
